chart
v1.10.0arrow_drop_down

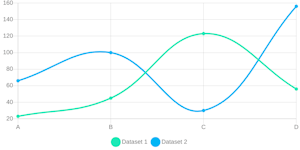

Chart basic:
import React from 'react';
import { Chart, Dataset } from 'react-rainbow-components';
import { FontAwesomeIcon } from '@fortawesome/react-fontawesome';
import { faCog, faEllipsisV } from '@fortawesome/free-solid-svg-icons';
const containerStyles = {
maxWidth: 600,
};
<div className="rainbow-p-vertical_medium rainbow-m_auto" style={containerStyles}>
<div className="rainbow-align-content_center">
<Chart
labels={['A', 'B', 'C', 'D']}
type="line"
className="rainbow-m-horizontal_xx-large rainbow-m-top_x-large"
>
<Dataset
title="Dataset 1"
values={[23, 45, 123, 56]}
backgroundColor="#1de9b6"
borderColor="#1de9b6"
/>
<Dataset
title="Dataset 2"
values={[66, 100, 30, 156]}
backgroundColor="#01b6f5"
borderColor="#01b6f5"
/>
</Chart>
</div>
</div>

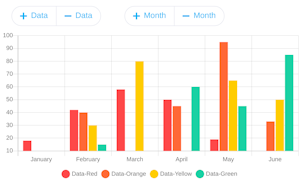

Bar chart vertical:
import React from 'react';
import { Chart, Dataset, ButtonGroup, Button } from 'react-rainbow-components';
import { FontAwesomeIcon } from '@fortawesome/react-fontawesome';
import { faPlus, faMinus } from '@fortawesome/free-solid-svg-icons';
const containerStyles = {
maxWidth: 600,
};
class BarChartExample extends React.Component {
constructor(props) {
super(props);
this.titles = ['Data-Blue', 'Data-Purple', 'Data-Dark'];
this.colors = ['#01b6f5', '#663398', '#061c3f'];
this.months = ['July', 'August', 'September', 'October', 'November', 'December'];
this.state = {
labels: ['January', 'February', 'March', 'April', 'May', 'June'],
datasets: [
{
title: 'Data-Red',
backgroundColor: '#fe4849',
values: [18, 42, 58, 50, 19, undefined],
},
{
title: 'Data-Orange',
backgroundColor: '#ff6837',
values: [undefined, 40, undefined, 45, 95, 33],
},
{
title: 'Data-Yellow',
backgroundColor: '#ffcc00',
values: [undefined, 30, 80, undefined, 65, 50],
},
{
title: 'Data-Green',
backgroundColor: '#1ad1a3',
values: [undefined, 15, undefined, 60, 45, 85],
},
],
};
}
addDataset() {
const { labels, datasets } = this.state;
const newValues = labels.map(label => Math.round(Math.random() * 100));
const newDatasets = datasets.concat({
title: this.titles.shift(),
values: newValues,
backgroundColor: this.colors.shift(),
});
this.setState({ datasets: newDatasets });
}
removeDataset() {
const { datasets } = this.state;
const dataset = datasets[datasets.length - 1];
this.titles.unshift(dataset.title);
this.colors.unshift(dataset.backgroundColor);
const newDatasets = datasets.filter(d => d.title !== dataset.title);
this.setState({ datasets: newDatasets });
}
addMonth() {
const { labels, datasets } = this.state;
const newlabels = labels.concat(this.months.shift());
const newDatasets = datasets.map(dataset => {
const { values, ...rest } = dataset;
const newValues = values.concat(Math.round(Math.random() * 100));
return {
...rest,
values: newValues,
};
});
this.setState({ labels: newlabels, datasets: newDatasets });
}
removeMonth() {
const { labels, datasets } = this.state;
const label = labels[labels.length - 1];
this.months.unshift(label);
const newLabels = labels.filter(l => l !== label);
const newDatasets = datasets.map(dataset => {
const { values, ...rest } = dataset;
const newValues = values.slice(0, values.length - 1);
return {
...rest,
values: newValues,
};
});
this.setState({ labels: newLabels, datasets: newDatasets });
}
renderDatasets() {
const { datasets } = this.state;
return datasets.map(({ title, values, backgroundColor }) => (
<Dataset key={title} title={title} values={values} backgroundColor={backgroundColor} />
));
}
render() {
const { labels, datasets } = this.state;
const noMoreTitles = this.titles.length === 0;
const noMoreDatasets = datasets.length === 0;
const noMoreMonths = this.months.length === 0;
const noMoreLabels = labels.length === 0;
return (
<div className="rainbow-p-vertical_large">
<div className="rainbow-align-content_center rainbow-flex_wrap">
<ButtonGroup className="rainbow-m-horizontal_large rainbow-m-vertical_small">
<Button onClick={() => this.addDataset()} disabled={noMoreTitles}>
<FontAwesomeIcon icon={faPlus} className="rainbow-m-right_x-small" />{' '}
Data
</Button>
<Button onClick={() => this.removeDataset()} disabled={noMoreDatasets}>
<FontAwesomeIcon icon={faMinus} className="rainbow-m-right_x-small" />{' '}
Data
</Button>
</ButtonGroup>
<ButtonGroup className="rainbow-m-horizontal_large rainbow-m-vertical_small">
<Button onClick={() => this.addMonth()} disabled={noMoreMonths}>
<FontAwesomeIcon icon={faPlus} className="rainbow-m-right_x-small" />{' '}
Month
</Button>
<Button onClick={() => this.removeMonth()} disabled={noMoreLabels}>
<FontAwesomeIcon icon={faMinus} className="rainbow-m-right_x-small" />{' '}
Month
</Button>
</ButtonGroup>
</div>
<div
style={containerStyles}
className="rainbow-align-content_center rainbow-m-vertical_large rainbow-m_auto"
>
<Chart labels={labels} type="bar">
{this.renderDatasets()}
</Chart>
</div>
</div>
);
}
}
<BarChartExample />;

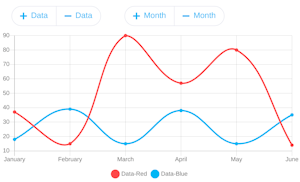

Line chart:
import React from 'react';
import { Chart, Dataset, ButtonGroup, Button } from 'react-rainbow-components';
import { FontAwesomeIcon } from '@fortawesome/react-fontawesome';
import { faPlus, faMinus } from '@fortawesome/free-solid-svg-icons';
const containerStyles = {
maxWidth: 600,
};
class LineChartExample extends React.Component {
constructor(props) {
super(props);
this.titles = ['Data-Yellow', 'Data-Green', 'Data-Orange', 'Data-Purple', 'Data-Dark'];
this.colors = ['#ffcc00', '#1ad1a3', '#ff6837', '#663398', '#061c3f'];
this.months = ['July', 'August', 'September', 'October', 'November', 'December'];
this.state = {
labels: ['January', 'February', 'March', 'April', 'May', 'June'],
datasets: [
{
title: 'Data-Red',
borderColor: '#fe4849',
values: [37, 15, 90, 57, 80, 14],
},
{
title: 'Data-Blue',
borderColor: '#01b6f5',
values: [18, 39, 15, 38, 15, 35],
},
],
};
}
addDataset() {
const { labels, datasets } = this.state;
const newValues = labels.map(label => Math.round(Math.random() * 100));
const newDatasets = datasets.concat({
title: this.titles.shift(),
values: newValues,
borderColor: this.colors.shift(),
});
this.setState({ datasets: newDatasets });
}
removeDataset() {
const { datasets } = this.state;
const dataset = datasets[datasets.length - 1];
this.titles.unshift(dataset.title);
this.colors.unshift(dataset.borderColor);
const newDatasets = datasets.filter(d => d.title !== dataset.title);
this.setState({ datasets: newDatasets });
}
addMonth() {
const { labels, datasets } = this.state;
const newlabels = labels.concat(this.months.shift());
const newDatasets = datasets.map(dataset => {
const { values, ...rest } = dataset;
const newValues = values.concat(Math.round(Math.random() * 100));
return {
...rest,
values: newValues,
};
});
this.setState({ labels: newlabels, datasets: newDatasets });
}
removeMonth() {
const { labels, datasets } = this.state;
const label = labels[labels.length - 1];
this.months.unshift(label);
const newLabels = labels.filter(l => l !== label);
const newDatasets = datasets.map(dataset => {
const { values, ...rest } = dataset;
const newValues = values.slice(0, values.length - 1);
return {
...rest,
values: newValues,
};
});
this.setState({ labels: newLabels, datasets: newDatasets });
}
renderDatasets() {
const { datasets } = this.state;
return datasets.map(({ title, values, borderColor }) => (
<Dataset
key={title}
title={title}
values={values}
borderColor={borderColor}
backgroundColor={borderColor}
/>
));
}
render() {
const { labels, datasets } = this.state;
const noMoreTitles = this.titles.length === 0;
const noMoreDatasets = datasets.length === 0;
const noMoreMonths = this.months.length === 0;
const noMoreLabels = labels.length === 0;
return (
<div className="rainbow-p-vertical_large rainbow-m-bottom_large">
<div className="rainbow-align-content_center rainbow-flex_wrap">
<ButtonGroup className="rainbow-m-horizontal_large rainbow-m-vertical_small">
<Button onClick={() => this.addDataset()} disabled={noMoreTitles}>
<FontAwesomeIcon icon={faPlus} className="rainbow-m-right_x-small" />{' '}
Data
</Button>
<Button onClick={() => this.removeDataset()} disabled={noMoreDatasets}>
<FontAwesomeIcon icon={faMinus} className="rainbow-m-right_x-small" />{' '}
Data
</Button>
</ButtonGroup>
<ButtonGroup className="rainbow-m-horizontal_large rainbow-m-vertical_small">
<Button onClick={() => this.addMonth()} disabled={noMoreMonths}>
<FontAwesomeIcon icon={faPlus} className="rainbow-m-right_x-small" />{' '}
Month
</Button>
<Button onClick={() => this.removeMonth()} disabled={noMoreLabels}>
<FontAwesomeIcon icon={faMinus} className="rainbow-m-right_x-small" />{' '}
Month
</Button>
</ButtonGroup>
</div>
<div
style={containerStyles}
className="rainbow-align-content_center rainbow-m-vertical_large rainbow-m_auto"
>
<Chart labels={labels} type="line">
{this.renderDatasets()}
</Chart>
</div>
</div>
);
}
}
<LineChartExample />;

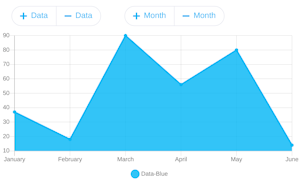

Line chart fill:
import React from 'react';
import { Chart, Dataset, ButtonGroup, Button } from 'react-rainbow-components';
import { FontAwesomeIcon } from '@fortawesome/react-fontawesome';
import { faPlus, faMinus } from '@fortawesome/free-solid-svg-icons';
const containerStyles = {
maxWidth: 600,
};
class LineChartExample extends React.Component {
constructor(props) {
super(props);
this.titles = [
'Data-Red',
'Data-Yellow',
'Data-Green',
'Data-Orange',
'Data-Purple',
'Data-Dark',
];
this.colors = ['#fe4849', '#ffcc00', '#1ad1a3', '#ff6837', '#663398', '#061c3f'];
this.backgrounds = [
'rgba(254, 72, 73, 0.80)',
'rgba(255, 204, 0, 0.80)',
'rgba(26, 209, 163, 0.80)',
'rgba(255, 104, 55, 0.80)',
undefined,
undefined,
];
this.months = ['July', 'August', 'September', 'October', 'November', 'December'];
this.state = {
labels: ['January', 'February', 'March', 'April', 'May', 'June'],
datasets: [
{
title: 'Data-Blue',
borderColor: '#01b6f5',
backgroundColor: 'rgba(1, 182, 245, 0.80)',
values: [37, 18, 90, 56, 80, 14],
},
],
};
}
addDataset() {
const { labels, datasets } = this.state;
const newValues = labels.map(label => Math.round(Math.random() * 100));
const newDatasets = datasets.concat({
title: this.titles.shift(),
values: newValues,
borderColor: this.colors.shift(),
backgroundColor: this.backgrounds.shift(),
});
this.setState({ datasets: newDatasets });
}
removeDataset() {
const { datasets } = this.state;
if (datasets.length > 0) {
const dataset = datasets[datasets.length - 1];
this.titles.unshift(dataset.title);
this.colors.unshift(dataset.borderColor);
this.backgrounds.unshift(dataset.backgroundColor);
const newDatasets = datasets.filter(d => d.title !== dataset.title);
this.setState({ datasets: newDatasets });
}
}
addMonth() {
const { labels, datasets } = this.state;
const newlabels = labels.concat(this.months.shift());
const newDatasets = datasets.map(dataset => {
const { values, ...rest } = dataset;
const newValues = values.concat(Math.round(Math.random() * 100));
return {
...rest,
values: newValues,
};
});
this.setState({ labels: newlabels, datasets: newDatasets });
}
removeMonth() {
const { labels, datasets } = this.state;
const label = labels[labels.length - 1];
this.months.unshift(label);
const newLabels = labels.filter(l => l !== label);
const newDatasets = datasets.map(dataset => {
const { values, ...rest } = dataset;
const newValues = values.slice(0, values.length - 1);
return {
...rest,
values: newValues,
};
});
this.setState({ labels: newLabels, datasets: newDatasets });
}
renderDatasets() {
const { datasets } = this.state;
return datasets.map(({ title, values, borderColor, backgroundColor }) => (
<Dataset
key={title}
title={title}
values={values}
borderColor={borderColor}
backgroundColor={backgroundColor}
fill
/>
));
}
render() {
const { labels, datasets } = this.state;
const noMoreTitles = this.titles.length === 0;
const noMoreDatasets = datasets.length === 0;
const noMoreMonths = this.months.length === 0;
const noMoreLabels = labels.length === 0;
return (
<div className="rainbow-p-vertical_large rainbow-m-bottom_x-large">
<div className="rainbow-align-content_center rainbow-flex_wrap">
<ButtonGroup className="rainbow-m-horizontal_large rainbow-m-vertical_small">
<Button onClick={() => this.addDataset()} disabled={noMoreTitles}>
<FontAwesomeIcon icon={faPlus} className="rainbow-m-right_x-small" />{' '}
Data
</Button>
<Button onClick={() => this.removeDataset()} disabled={noMoreDatasets}>
<FontAwesomeIcon icon={faMinus} className="rainbow-m-right_x-small" />{' '}
Data
</Button>
</ButtonGroup>
<ButtonGroup className="rainbow-m-horizontal_large rainbow-m-vertical_small">
<Button onClick={() => this.addMonth()} disabled={noMoreMonths}>
<FontAwesomeIcon icon={faPlus} className="rainbow-m-right_x-small" />{' '}
Month
</Button>
<Button onClick={() => this.removeMonth()} disabled={noMoreLabels}>
<FontAwesomeIcon icon={faMinus} className="rainbow-m-right_x-small" />{' '}
Month
</Button>
</ButtonGroup>
</div>
<div
style={containerStyles}
className="rainbow-align-content_center rainbow-m-vertical_large rainbow-m_auto"
>
<Chart labels={labels} type="line" disableCurves>
{this.renderDatasets()}
</Chart>
</div>
</div>
);
}
}
<LineChartExample />;

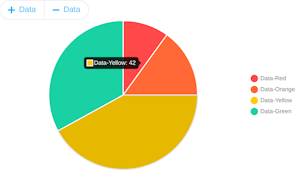

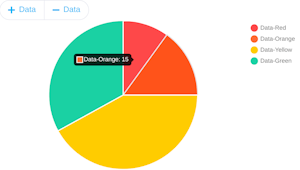

Pie chart:
import React from 'react';
import { Chart, Dataset, ButtonGroup, Button } from 'react-rainbow-components';
import { FontAwesomeIcon } from '@fortawesome/react-fontawesome';
import { faPlus, faMinus } from '@fortawesome/free-solid-svg-icons';
const containerStyles = {
maxWidth: 600,
};
class PieChartExample extends React.Component {
constructor(props) {
super(props);
this.titles = ['Data-Blue', 'Data-Purple', 'Data-Dark'];
this.colors = ['#01b6f5', '#663398', '#061c3f'];
this.state = {
labels: ['Data-Red', 'Data-Orange', 'Data-Yellow', 'Data-Green'],
dataset: [
{
value: 10,
color: '#fe4849',
},
{
value: 15,
color: '#ff6837',
},
{
value: 42,
color: '#ffcc00',
},
{
value: 33,
color: '#1ad1a3',
},
],
};
}
addData() {
const { labels, dataset } = this.state;
const newLabels = labels.concat(this.titles.shift());
const newDataset = dataset.concat({
value: Math.round(Math.random() * 100),
color: this.colors.shift(),
});
this.setState({ labels: newLabels, dataset: newDataset });
}
removeData() {
const { labels, dataset } = this.state;
const lastLabel = labels[labels.length - 1];
this.titles.unshift(lastLabel);
const newLabels = labels.filter(l => l !== lastLabel);
const lastData = dataset[dataset.length - 1];
this.colors.unshift(lastData.color);
const newDataset = dataset.slice(0, dataset.length - 1);
this.setState({ labels: newLabels, dataset: newDataset });
}
renderDataset() {
let data = [];
let colors = [];
const { dataset } = this.state;
dataset.forEach(d => {
data.push(d.value);
colors.push(d.color);
});
return <Dataset title="Data" values={data} backgroundColor={colors} />;
}
render() {
const { labels } = this.state;
const noMoreTitles = this.titles.length === 0;
const noMoreLabels = labels.length === 0;
return (
<div className="rainbow-p-vertical_xx-large rainbow-p-horizontal_medium">
<ButtonGroup className="rainbow-align-content_center rainbow-flex_wrap">
<Button onClick={() => this.addData()} disabled={noMoreTitles}>
<FontAwesomeIcon icon={faPlus} className="rainbow-m-right_x-small" /> Data
</Button>
<Button onClick={() => this.removeData()} disabled={noMoreLabels}>
<FontAwesomeIcon icon={faMinus} className="rainbow-m-right_x-small" /> Data
</Button>
</ButtonGroup>
<div
style={containerStyles}
className="rainbow-align-content_center rainbow-m-vertical_large rainbow-m_auto"
>
<Chart labels={labels} type="pie" legendPosition="right" disableCurves>
{this.renderDataset()}
</Chart>
</div>
</div>
);
}
}
<PieChartExample />;

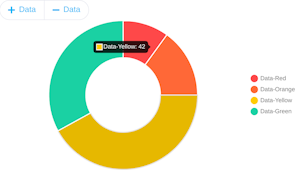

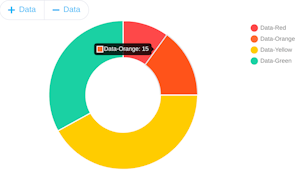

Doughnut chart:
import React from 'react';
import { Chart, Dataset, ButtonGroup, Button } from 'react-rainbow-components';
import { FontAwesomeIcon } from '@fortawesome/react-fontawesome';
import { faPlus, faMinus } from '@fortawesome/free-solid-svg-icons';
const containerStyles = {
maxWidth: 600,
};
class DoughnutChartExample extends React.Component {
constructor(props) {
super(props);
this.titles = ['Data-Blue', 'Data-Purple', 'Data-Dark'];
this.colors = ['#01b6f5', '#663398', '#061c3f'];
this.state = {
labels: ['Data-Red', 'Data-Orange', 'Data-Yellow', 'Data-Green'],
dataset: [
{
value: 10,
color: '#fe4849',
},
{
value: 15,
color: '#ff6837',
},
{
value: 42,
color: '#ffcc00',
},
{
value: 33,
color: '#1ad1a3',
},
],
};
}
addData() {
const { labels, dataset } = this.state;
const newLabels = labels.concat(this.titles.shift());
const newDataset = dataset.concat({
value: Math.round(Math.random() * 100),
color: this.colors.shift(),
});
this.setState({ labels: newLabels, dataset: newDataset });
}
removeData() {
const { labels, dataset } = this.state;
const lastLabel = labels[labels.length - 1];
this.titles.unshift(lastLabel);
const newLabels = labels.filter(l => l !== lastLabel);
const lastData = dataset[dataset.length - 1];
this.colors.unshift(lastData.color);
const newDataset = dataset.slice(0, dataset.length - 1);
this.setState({ labels: newLabels, dataset: newDataset });
}
renderDataset() {
let data = [];
let colors = [];
const { dataset } = this.state;
dataset.forEach(d => {
data.push(d.value);
colors.push(d.color);
});
return <Dataset title="Data" values={data} backgroundColor={colors} />;
}
render() {
const { labels } = this.state;
const noMoreTitles = this.titles.length === 0;
const noMoreLabels = labels.length === 0;
return (
<div className="rainbow-p-vertical_xx-large rainbow-p-horizontal_medium">
<div>
<ButtonGroup className="rainbow-m-vertical_large">
<Button onClick={() => this.addData()} disabled={noMoreTitles}>
<FontAwesomeIcon icon={faPlus} className="rainbow-m-right_x-small" />{' '}
Data
</Button>
<Button onClick={() => this.removeData()} disabled={noMoreLabels}>
<FontAwesomeIcon icon={faMinus} className="rainbow-m-right_x-small" />{' '}
Data
</Button>
</ButtonGroup>
</div>
<div
style={containerStyles}
className="rainbow-align-content_center rainbow-m-vertical_large rainbow-m_auto"
>
<Chart labels={labels} type="doughnut" legendPosition="right" disableCurves>
{this.renderDataset()}
</Chart>
</div>
</div>
);
}
}
<DoughnutChartExample />;
Name | Type | Default value | Description |
---|---|---|---|
type | 'bar' | 'horizontalBar' | 'line' | 'radar' | 'pie' | 'doughnut' | 'polarArea' | 'bubble' | 'bar' | The type of chart to draw. |
labels | string[] | [] | Defines the names of the sections for the corresponding values. |
showStacked | bool | false | Determines whether to show the stacked bars in a bar chart. |
showLegend | bool | true | Defines if the legend is shown. |
legendPosition | 'top' | 'bottom' | 'right' | 'left' | 'bottom' | The position of the legend. |
disableAnimations | bool | false | Determines whether it should perform animations when rendering the chart, this would improve general performance and is recommended for high data volumes charts. |
disableLines | bool | false | Determines whether to draw the lines that join the dots in a line chart, is recommended for high data volumes charts. |
disableCurves | bool | false | Determines whether the lines that join the dots in a line chart should be curved or straight. |
maintainAspectRatio | bool | true | Maintain the original canvas aspect ratio. |
className | string | undefined | A CSS class for the outer element, in addition to the component’s base classes. |
style | object | undefined | An object with custom style applied for the outer element. |
children | node | undefined |
