DataTable

A data driven table.

Usage

import { DataTable } from 'grommet';
<DataTable />

Properties

a11yTitle

Custom label to be used by screen readers. When provided, an aria-label will be added to the element.

string

alignSelf

How to align along the cross axis when contained in a Box or along the column axis when contained in a Grid.

start
center
end
stretch

gridArea

The name of the area to place this inside a parent Grid.

string

margin

The amount of margin around the component. An object can be specified to distinguish horizontal margin, vertical margin, and margin on a particular side.

none
xxsmall
xsmall
small
medium
large
xlarge
{
  bottom:
    xxsmall
    xsmall
    small
    medium
    large
    xlarge
    string,
  end:
    xxsmall
    xsmall
    small
    medium
    large
    xlarge
    string,
  horizontal:
    xxsmall
    xsmall
    small
    medium
    large
    xlarge
    string,
  left:
    xxsmall
    xsmall
    small
    medium
    large
    xlarge
    string,
  right:
    xxsmall
    xsmall
    small
    medium
    large
    xlarge
    string,
  start:
    xxsmall
    xsmall
    small
    medium
    large
    xlarge
    string,
  top:
    xxsmall
    xsmall
    small
    medium
    large
    xlarge
    string,
  vertical:
    xxsmall
    xsmall
    small
    medium
    large
    xlarge
    string
}
string

background

Cell background. You can set the background per context by passing an object with keys for 'heading’, 'body’, and/or 'footer’. If you pass an array, rows will cycle between the array values.

string
[string]
{
  header:
    string
    [string],
  body:
    string
    [string],
  footer:
    string
    [string]
}

border

Cell border. You can set the border per context by passing an object with keys for 'heading’, 'body’, and/or 'footer’.

boolean
horizontal
vertical
top
bottom
left
right
{
  color:
    string
    {
      dark: string,
      light: string
    },
  side:
    horizontal
    vertical
    top
    bottom
    left
    right,
  size:
    xxsmall
    xsmall
    small
    medium
    large
    xlarge
    string
}
{
  header:
    boolean
    horizontal
    vertical
    top
    bottom
    left
    right
    {
      color:
        string
        {
          dark: string,
          light: string
        },
      side:
        horizontal
        vertical
        top
        bottom
        left
        right,
      size:
        xxsmall
        xsmall
        small
        medium
        large
        xlarge
        string
    },
  body:
    boolean
    horizontal
    vertical
    top
    bottom
    left
    right
    {
      color:
        string
        {
          dark: string,
          light: string
        },
      side:
        horizontal
        vertical
        top
        bottom
        left
        right,
      size:
        xxsmall
        xsmall
        small
        medium
        large
        xlarge
        string
    },
  footer:
    boolean
    horizontal
    vertical
    top
    bottom
    left
    right
    {
      color:
        string
        {
          dark: string,
          light: string
        },
      side:
        horizontal
        vertical
        top
        bottom
        left
        right,
      size:
        xxsmall
        xsmall
        small
        medium
        large
        xlarge
        string
    }
}

columns

A description of the data. The order controls the column order. ‘property’ indicates which property in the data objects to associate the column with. ‘header’ indicates what to display in the column header. ‘render’ allows for custom rendering of body cells. Use ‘render’ for custom formatting for things like currency and date or to display rich content like Meters. ‘align’ indicates how the cells in the column are aligned. ‘aggregate’ indicates how the data in the column should be aggregated. This only applies to a footer or groupBy context. ‘footer’ indicates what should be shown in the footer for the column. ‘search’ indicates whether a search filter should be made available for the column. ‘primary’ indicates that this property should be used as the unique identifier, which gives the cell ‘row’ scope for accessibility. If ‘primary’ is not used for any column, and ‘primaryKey’ isn’t specified either, then the first column will be used.

[{
  align:
    center
    start
    end,
  aggregate:
    avg
    max
    min
    sum,
  footer:
    node
    {
      aggregate: boolean
    },
  header:
    string
    node
    {
      aggregate: boolean
    },
  primary: boolean,
  property: string,
  render: function,
  search: boolean,
  sortable: boolean
}]

data

Array of data objects.

[{

}]

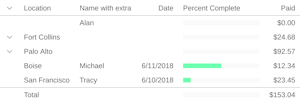

groupBy

Property to group data by. If object is specified ‘property’ is used to group data by, ‘expand’ accepts array of group keys that sets expanded groups and ‘onExpand’ is a function that will be called after expand button is clicked with an array of keys of expanded groups.

string
{
  property: string,
  expand: [string],
  onExpand: function
}

onMore

Use this to indicate that ‘data’ doesn’t contain all that it could. It will be called when all of the data rows have been rendered. This might be used when the total number of items that could be retrieved is more than you’d want to load into the browser. ‘onMore’ allows you to lazily fetch more from the server only when needed. This cannot be combined with properties that expect all data to be present in the browser, such as columns.search, sortable, groupBy, or columns.aggregate.

function

replace

Whether to replace previously rendered items with a generic spacing element when they have scrolled out of view. This is more performant but means that in-page searching will not find elements that have been replaced.

boolean

onClickRow

When supplied, this function will be called with an event object that include a ‘datum’ property containing the data value associated with the clicked row. You should not include interactive elements, like Anchor or Button inside table cells as that can cause confusion with overlapping interactive elements.

function

onSearch

When supplied, and when at least one column has ‘search’ enabled, this function will be called with an object with keys for property names and values which are the search text strings. This is typically employed so a back-end can be used to search through the data.

function

pad

Cell padding. You can set the padding per context by passing an object with keys for 'heading’, 'body’, and/or 'footer’.

xxsmall
xsmall
small
medium
large
xlarge
string
{
  horizontal:
    xxsmall
    xsmall
    small
    medium
    large
    xlarge,
  vertical:
    xxsmall
    xsmall
    small
    medium
    large
    xlarge,
  top:
    xxsmall
    xsmall
    small
    medium
    large
    xlarge,
  bottom:
    xxsmall
    xsmall
    small
    medium
    large
    xlarge,
  left:
    xxsmall
    xsmall
    small
    medium
    large
    xlarge,
  right:
    xxsmall
    xsmall
    small
    medium
    large
    xlarge
}
{
  header: custom,
  body: custom,
  footer: custom
}

primaryKey

When supplied, indicates the property for a data object to use to get a unique identifier. See also the ‘columns.primary’ description. Use this property when the columns approach will not work for your data set.

string

resizeable

Whether to allow the user to resize column widths.

boolean

rowProps

Row specific background, border, and pad, keyed by primary key value. For example: { "primary-key-value": { background: …, border: …, pad: … }}, where the background, border, and pad accept the same values as the same named properties on DataTable.

{

}

size

The height of the table body. If set, the table body will have a fixed height and the rows will be scrollable within it. In order to preserve header and footer cell alignment, all cells will have the same width. This cannot be used in combination with 'resizeable’.

small
medium
large
xlarge
string

sortable

Whether to allow the user to sort columns.

boolean

step

How many items to render at a time. Defaults to 50.

number

Intrinsic element

table

Theme

global.hover.background

The background style when hovering over an interactive row. Expects string | { color: string, opacity: string }.

Defaults to

{ color: 'active', opacity: 'medium' }

global.hover.color

The text color when hovering over an interactive row. Expects string | { dark: string, light: string }.

Defaults to

{ dark: 'white', light: 'black' }

dataTable.groupHeader.background

The background color of the group header. Expects string | { dark: string, light: string }.

Defaults to

{ dark: 'dark-2', light: 'light-2' }

dataTable.groupHeader.border.side

The border side rendered for the group header. Expects string.

Defaults to

bottom

dataTable.groupHeader.border.size

The border size of the group header border. Expects string.

Defaults to

xsmall

dataTable.groupHeader.fill

Whether the height should fill the group header. Expects string.

Defaults to

vertical

dataTable.groupHeader.pad

The pad used for the group header. Expects string | object.

Defaults to

{ horizontal: 'small', vertical: 'xsmall' }

dataTable.header

Styles for the header. Expects object.

Defaults to

{}

dataTable.icons.ascending

The ascending icon. Expects React.Element.

Defaults to

<FormDown />

dataTable.icons.contract

The contract icon. Expects React.Element.

Defaults to

<FormUp />

dataTable.icons.descending

The descending icon. Expects React.Element.

Defaults to

<FormUp />

dataTable.icons.expand

The expand icon. Expects React.Element.

Defaults to

<FormDown />

dataTable.primary.weight

The font weight for primary cells. Expects string.

Defaults to

bold

dataTable.resize.border.color

The border color for resize. Expects string | { dark: string, light: string }.

Defaults to

border

dataTable.resize.border.side

The border side used for resize. Expects string.

Defaults to

right

table.row.hover.background

The background color when hovering over an interactive row. Expects string | { color: string, opacity: string }.

Defaults to

undefined

table.row.hover.color

The text color when hovering over an interactive row. Expects string | { dark: string, light: string }.

Defaults to

undefined
